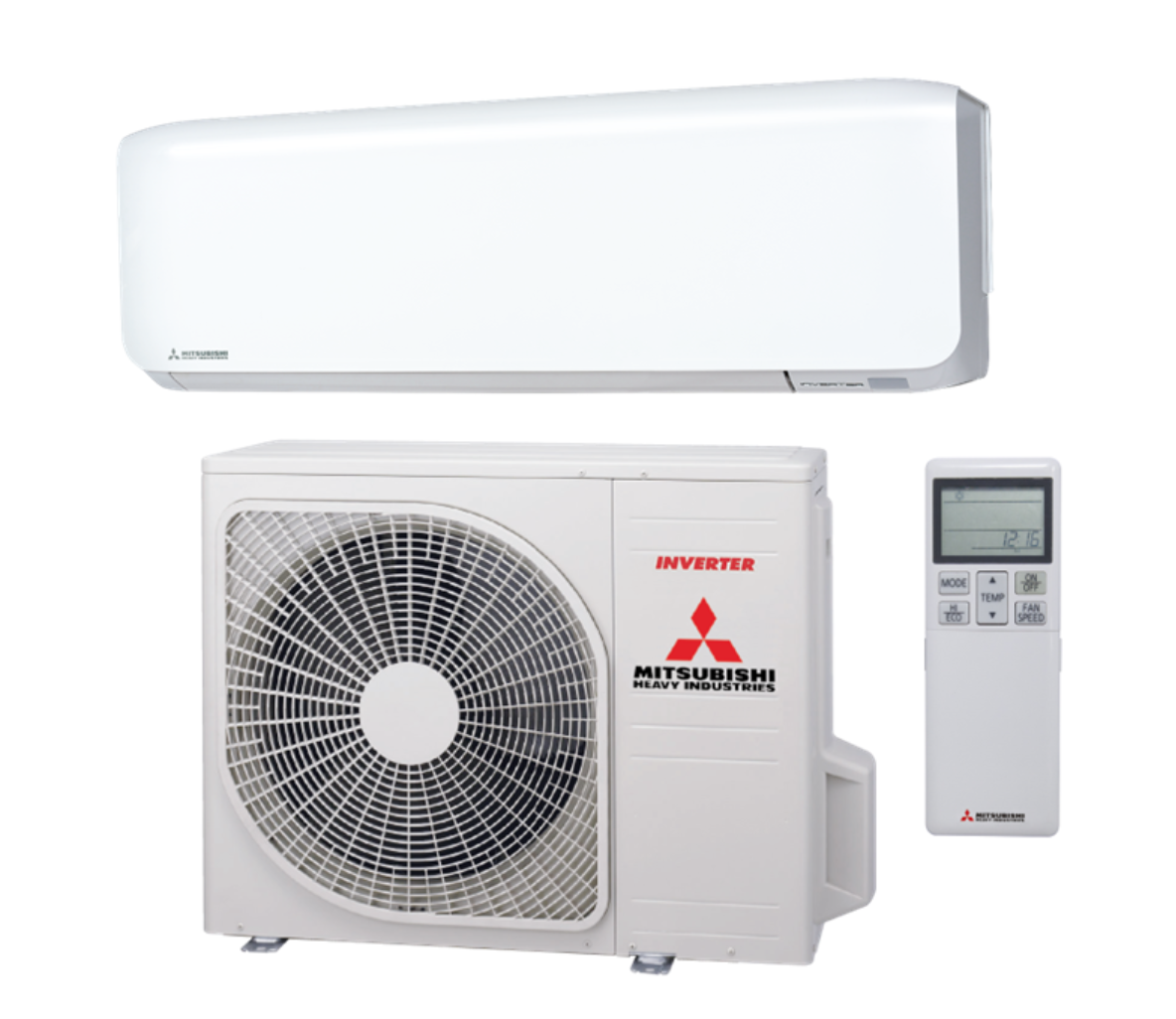

Mitsubishi Heavy Premium Wall System - Supply and Fitted

Wi-Fi Built In - Weekly Timer – Through Smart M-air App and Infra-red controller -Self-Clean Operation - Allergen Clear Operation -Allergen Clear & Photocatalytic Washable Deodorising Filter Included - 25m pipe run

9000 BTU, suitable for a room 20Sqm
Get ready for summer with our energy efficient airconditioning solution from Mitsubishi.
Subject to a  virtual survey, We will install the system for you so you can benefit from our extended warranty of 10 years on material.

Terms :
Indoor unit to be mounted on an the inside of an external wall
Distance between indoor unit and outdoor condenser to be no more than 6 meters
Power supply must be available for the condenser for us to connect to. we recommend having a 2.5mm cable an a separate spur.
Ground floor or 1st floor installation only
Service available within M25
Trunking available to cover external pipes - but this is charged as an additional extra-

We will contact you to discuss installation date



Refrigerant
R32
Max piping length
25 m
Sound pressure level cooling (high / medium / low)
45 / 34 / 23 dBA
Sound pressure level heating (high / medium / low)
43 / 34 / 26 dBA
Cooling capacity
from 2.5 kw to 6.0kw
Heating capacity
From 2.5 kw to 6.0 KW
Power Consumption (cooling/heating)
0.71 / 0.69 kW
Power supply
220-240/1/50
Max height difference (outdoor is higher/lower)
10 / 10
Sound pressure level (OU)
47 / 45
Dimensions (H x W x D) (OU)
540 x 645 x 275
Weight (OU)
26.5
Dimensions (H x W x D) (IU)
267 x 783 x 210
Weight (IU)
7.0
Max current
9,0 A
Refrigerant pipe size (I)
1/4 - 3/8
Refrigerant pipe size (M)
6.35 - 9.52
Air flow cooling (low/medium/high)
4.2 / 7.3 / 10
Air flow heating (low/medium/high)
5.2 / 7.3 / 9.5
